Reverse Proxy Guide

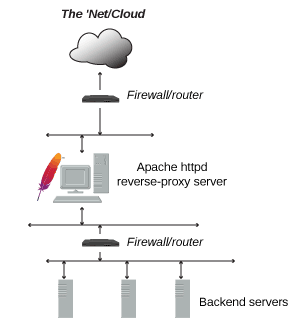

Reverse Proxy

Related Modules	Related Directives
mod_proxy mod_proxy_balancer mod_proxy_hcheck	ProxyPass BalancerMember

Simple reverse proxying

The ProxyPass directive specifies the mapping of incoming requests to the backend server (or a cluster of servers known as a Balancer group). The simplest example proxies all requests ("/") to a single backend:

ProxyPass "/"  "http://www.example.com/"

To ensure that and Location: headers generated from the backend are modified to point to the reverse proxy, instead of back to itself, the ProxyPassReverse directive is most often required:

ProxyPass "/"  "http://www.example.com/"
ProxyPassReverse "/"  "http://www.example.com/"

Only specific URIs can be proxied, as shown in this example:

ProxyPass "/images"  "http://www.example.com/"
ProxyPassReverse "/images"  "http://www.example.com/"

In the above, any requests which start with the /images path with be proxied to the specified backend, otherwise it will be handled locally.

Clusters and Balancers

As useful as the above is, it still has the deficiencies that should the (single) backend node go down, or become heavily loaded, that proxying those requests provides no real advantage. What is needed is the ability to define a set or group of backend servers which can handle such requests and for the reverse proxy to load balance and failover among them. This group is sometimes called a cluster but Apache httpd's term is a balancer. One defines a balancer by leveraging the <Proxy> and BalancerMember directives as shown:

<Proxy balancer://myset>
    BalancerMember http://www2.example.com:8080
    BalancerMember http://www3.example.com:8080
    ProxySet lbmethod=bytraffic
</Proxy>

ProxyPass "/images/"  "balancer://myset/"
ProxyPassReverse "/images/"  "balancer://myset/"

The balancer:// scheme is what tells httpd that we are creating a balancer set, with the name myset. It includes 2 backend servers, which httpd calls BalancerMembers. In this case, any requests for /images will be proxied to one of the 2 backends. The ProxySet directive specifies that the myset Balancer use a load balancing algorithm that balances based on I/O bytes.

Balancer and BalancerMember configuration

You can adjust numerous configuration details of the balancers and the workers via the various parameters defined in ProxyPass. For example, assuming we would want http://www3.example.com:8080 to handle 3x the traffic with a timeout of 1 second, we would adjust the configuration as follows:

<Proxy balancer://myset>
    BalancerMember http://www2.example.com:8080
    BalancerMember http://www3.example.com:8080 loadfactor=3 timeout=1
    ProxySet lbmethod=bytraffic
</Proxy>

ProxyPass "/images"  "balancer://myset/"
ProxyPassReverse "/images"  "balancer://myset/"

Failover

You can also fine-tune various failover scenarios, detailing which workers and even which balancers should be accessed in such cases. For example, the below setup implements three failover cases:

1. http://spare1.example.com:8080 and http://spare2.example.com:8080 are only sent traffic if one or both of http://www2.example.com:8080 or http://www3.example.com:8080 is unavailable. (One spare will be used to replace one unusable member of the same balancer set.)
2. http://hstandby.example.com:8080 is only sent traffic if all other workers in balancer set 0 are not available.
3. If all load balancer set 0 workers, spares, and the standby are unavailable, only then will the http://bkup1.example.com:8080 and http://bkup2.example.com:8080 workers from balancer set 1 be brought into rotation.

Thus, it is possible to have one or more hot spares and hot standbys for each load balancer set.

<Proxy balancer://myset>
    BalancerMember http://www2.example.com:8080
    BalancerMember http://www3.example.com:8080 loadfactor=3 timeout=1
    BalancerMember http://spare1.example.com:8080 status=+R
    BalancerMember http://spare2.example.com:8080 status=+R
    BalancerMember http://hstandby.example.com:8080 status=+H
    BalancerMember http://bkup1.example.com:8080 lbset=1
    BalancerMember http://bkup2.example.com:8080 lbset=1
    ProxySet lbmethod=byrequests
</Proxy>

ProxyPass "/images/"  "balancer://myset/"
ProxyPassReverse "/images/"  "balancer://myset/"

For failover, hot spares are used as replacements for unusable workers in the same load balancer set. A worker is considered unusable if it is draining, stopped, or otherwise in an error/failed state. Hot standbys are used if all workers and spares in the load balancer set are unavailable. Load balancer sets (with their respective hot spares and standbys) are always tried in order from lowest to highest.

Balancer Manager

One of the most unique and useful features of Apache httpd's reverse proxy is the embedded balancer-manager application. Similar to mod_status, balancer-manager displays the current working configuration and status of the enabled balancers and workers currently in use. However, not only does it display these parameters, it also allows for dynamic, runtime, on-the-fly reconfiguration of almost all of them, including adding new BalancerMembers (workers) to an existing balancer. To enable these capability, the following needs to be added to your configuration:

<Location "/balancer-manager">
    SetHandler balancer-manager
    Require host localhost
</Location>

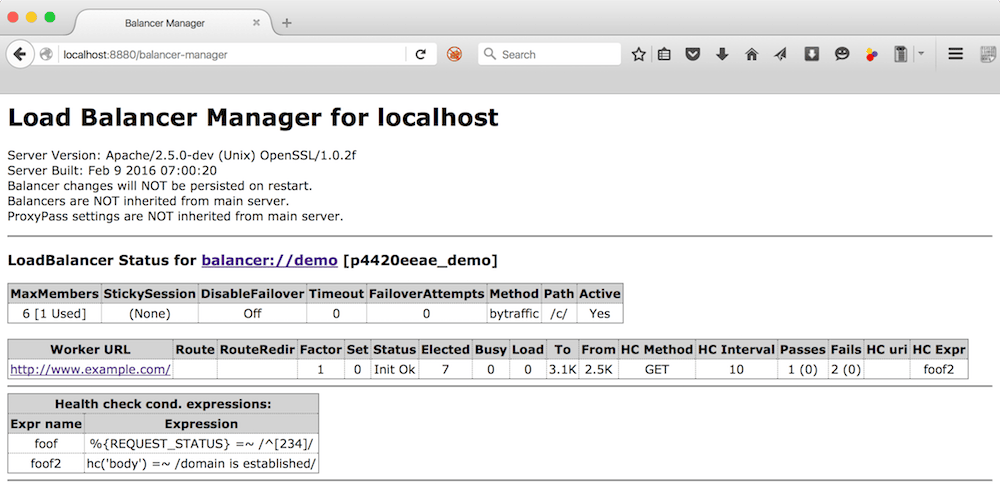

When the reverse proxy server is accessed at that url (eg: http://rproxy.example.com/balancer-manager/, you will see a page similar to the below:

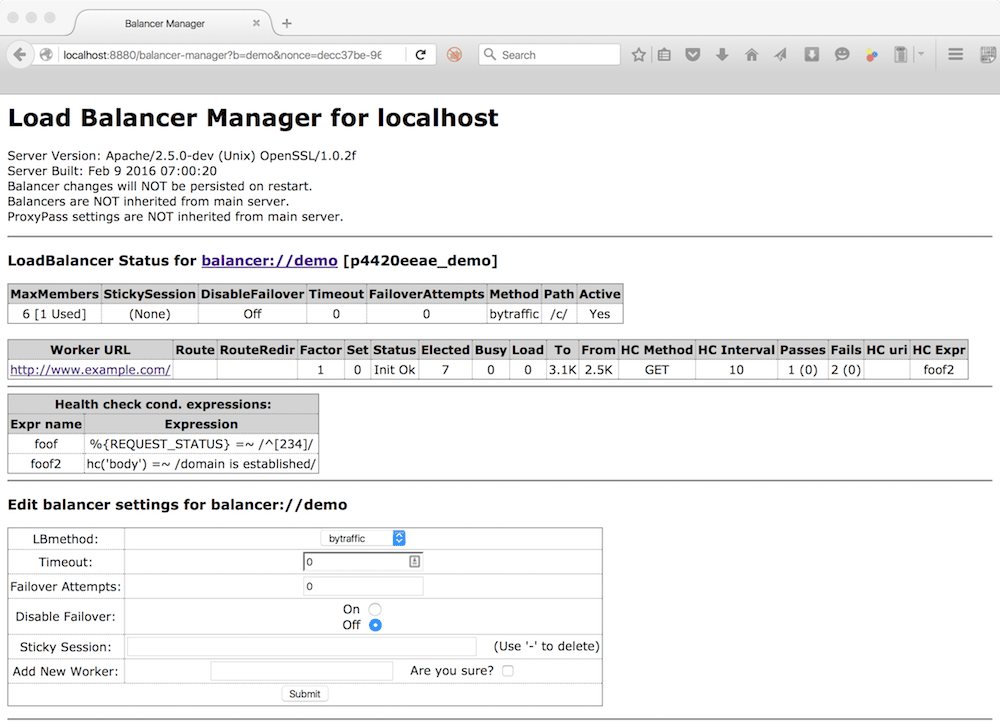

This form allows the devops admin to adjust various parameters, take workers offline, change load balancing methods and add new works. For example, clicking on the balancer itself, you will get the following page:

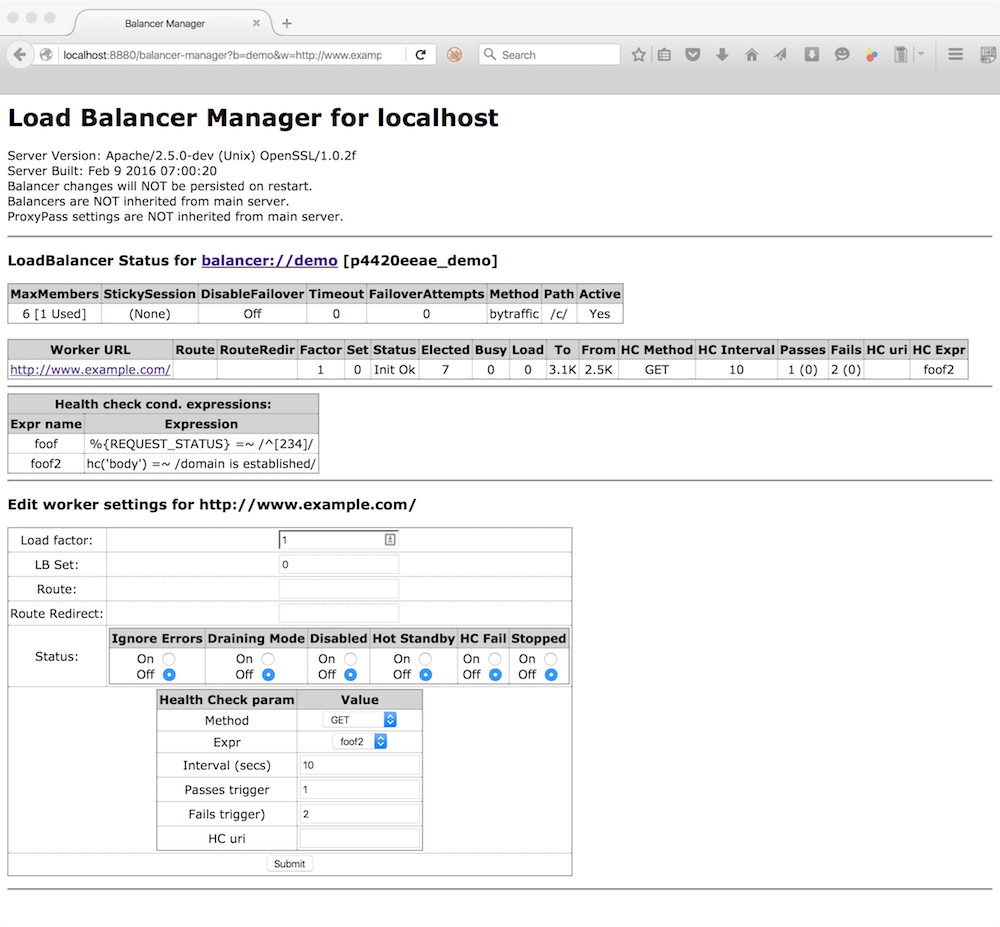

Whereas clicking on a worker, displays this page:

To have these changes persist restarts of the reverse proxy, ensure that BalancerPersist is enabled.

Dynamic Health Checks

Before httpd proxies a request to a worker, it can "test" if that worker is available via setting the ping parameter for that worker using ProxyPass. Oftentimes it is more useful to check the health of the workers out of band, in a dynamic fashion. This is achieved in Apache httpd by the mod_proxy_hcheck module.

BalancerMember status flags

In the balancer-manager the current state, or status, of a worker is displayed and can be set/reset. The meanings of these statuses are as follows:

Flag	String	Description
	Ok	Worker is available
	Init	Worker has been initialized
D	Dis	Worker is disabled and will not accept any requests; will be automatically retried.
S	Stop	Worker is administratively stopped; will not accept requests and will not be automatically retried
I	Ign	Worker is in ignore-errors mode and will always be considered available.
R	Spar	Worker is a hot spare. For each worker in a given lbset that is unusable (draining, stopped, in error, etc.), a usable hot spare with the same lbset will be used in its place. Hot spares can help ensure that a specific number of workers are always available for use by a balancer.
H	Stby	Worker is in hot-standby mode and will only be used if no other viable workers or spares are available in the balancer set.
E	Err	Worker is in an error state, usually due to failing pre-request check; requests will not be proxied to this worker, but it will be retried depending on the retry setting of the worker.
N	Drn	Worker is in drain mode and will only accept existing sticky sessions destined for itself and ignore all other requests.
C	HcFl	Worker has failed dynamic health check and will not be used until it passes subsequent health checks.
